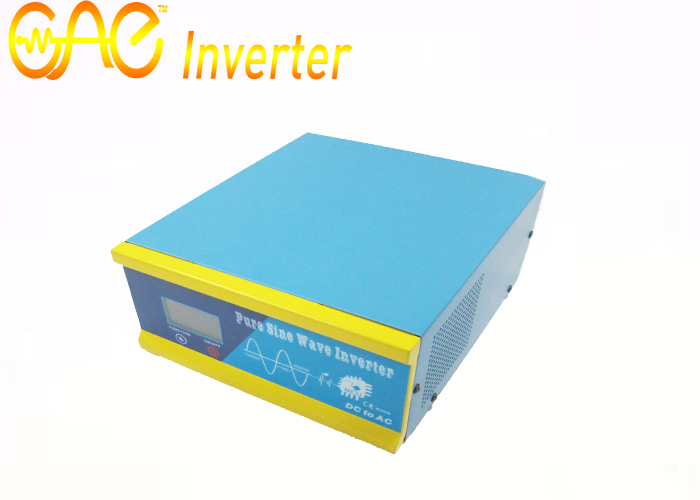

1000W DC TO AC 24v to 220v off grid pure sine wave power solar
inverter with FCC certification
Model : LI-10224
DSP smart chip Core: An individual 64-bit DSP control chip, more
text samples and control functions
The detection and control program is written into the DSP chip. The
results are fetched by DSP chip and the inverter is controlled by
DSP chip. The advantage is that the value is accurate(by effective
value). Tolerance is less than 0.01%
B. Most of inverters in the market are controlled by hardware
circuit.
Disadvantages:
1.Components will have the ageing problems.
2.Complicated production processes, full of wires, which will raise
not only the manual defects during production and after sales
problem.
Photoelectricity isolation circuitry technology:
Top One: It can detect and modulate the pulse width of boost circuit,
reduce the EFT(Electric Fast Transient) and raise
anti-interference.
Other: The inverter without this function. Which will cause high
EFT(Electric Fast Transient) and low anti-interference.
| LI Series Low Frequency Pure Sine Wave Inverter (220V) |
| Model | LI-351 | LI-501 | LI-601 | LI-102 | LI-152 | LI-202 | LI-302 | LI-502 | LI-702 | LI-103 | LI-153 | LI-203 |
| Rated Power | 350W | 500W | 600W | 1KW | 1.5KW | 2KW | 3KW | 5KW | 7KW | 10KW | 15KW | 20KW |
| Peak Power | 700W | 1000W | 1200W | 2KW | 3KW | 4KW | 6KW | 10KW | 14KW | 20KW | 30KW | 40KW |
| Nominal battery voltage | 12VDC | 12VDC/24VDC | 24VDC/48VDC | 48VDC | 96VDC | 192VDC |
| Input | DC input range | 10.5-15VDC (12V) / 21-30VDC (24V) / 42-60VDC (48V) / 84-120VDC
(96V) / 168-240VDC (192V) |
| AC Mains input range | (220/230/240VAC) 140-275VAC | 170-250VAC |
| AC input frequency | 50Hz: 45-65Hz / 60Hz: 55-65Hz (50Hz/60Hz automatic recognition) |
| Protection | Low battery alarm | ≤10.5VDC (12V) / ≤21VDC (24V) / ≤42VDC (48V) / ≤84VDC (96V) /
≤168VDC (192V) alarm |
| Low battery protection | ≤10VDC (12V) / ≤20VDC (24V) / ≤40VDC (48V) / ≤80VDC (96V) / ≤160VDC
(192V) automatic shutdown |
| High battery alarm | ≥15VDC (12V) / ≥30VDC (24V) / ≥60VDC (48V) / ≥120VDC (96V) /
≥240VDC (192V) alarm |
| High battery protection | ≥17VDC (12V) / ≥34VDC (24V) / ≥68VDC (48V) / ≥136VDC (96V) /
≥272VDC (192V) automatic shutdown |
| Over load protection | 110% more than rated capacity, automatic shutdown |
| High temperature | Built-in temperature real time sensor, ≥85℃ alarm, ≥90℃ automatic
shutdown |
| Short circuit protection | Automatic shutdown |
| Output | Transfer efficiency | ≥85% |
| Output voltage | (DC battery mode) 220/230/240VAC±2% |
| Output frequency | (DC battery mode) 60/50Hz±1% |
| Output wave form | Pure sine wave |
| Output voltage | (AC mains mode) stable 220/230/240VAC±10% output (built-in AVR
stablizer) |
| AVR output stablizer | AC mains<140VAC±5% swtich to DC battery mode, AC mains>150VAC
±5% return to AC mains mode; |
| AC mains>275VAC±5% swtich to DC battery mode, AC mains<255VAC
±5% return to AC mains mode; |
| The above is for output 220V system reference, 230V/240V output
just multiply by percentage |
| Output frequency | (AC mains mode) automatic tracing from AC input |
| Other | Transfer time | ≤10ms |
| Display | LCD Display with function buttons |
| Cooling system | Intelligent cooling fan control system |
| ≤42℃ slow fan, ≥45℃ fast fan |
| AC Charger | AC charging Voltage | 13.6-14.2VDC(12V)/27.2-28.4VDC(24V)/54.4-56.8VDC(48V)/108.8-113.6VDC(96V)/217.6-227.2VDC(192V) |
| AC charging current | Steady 15A |
| AC over charge protection | Battery ≧16V (12V) ≧32V (24V) ≧64V (48V) ≧128V (96V) ≧256V (192V),
stop charging after 60s alarm |
Working mode
(Optional) | 01 | AC mains priority |
| Always use AC mains as priority input to provide AC output and
automatically charge the battery, |
| only stops charging when battery is fully charged, and only starts
DC to AC converting untill AC mains is off |
| 02 | Energy saving |
| Loading≤10% automatic shutdown, loading≥11%-100% automatic turn on |
| 03 | DC battery priority |
| Always use DC battery as priority input to provide AC output, for
12V system, when battery≥13V, starts DC to |
| AC converting; when battery≤10.5V during converting, switch to AC
mains mode to provide AC output and |
| automatically start charging the battery (for 24V/48V/96V/192V
system, multiply by 2/4/8/16 accordingly) |
| Comnunication | RS-232/USB/SNMP(additional option) |
| Environment | Temperature | -20~75℃ |
| Humidity | ＜95% |
| Appearance | Product size (mm) | 300*240*120 | 410*225*410 | 485*300*655 |
| Packing size (mm) | | | |
| Net Weight (kg) | 7.2 | 7.5 | 7.5 | 8.7 | 23.5 | 25.5 | 28.8 | 55 | 56 | 85 | 105 | 125 |
| Gross Weight (kg) | | | | | | | | | | | | |
| *Product specifications are subject to change without further
notice |
Our Services
1.Sample Services
Applicable to quality test, function test, etc.
2.Repair Services
One year warranty
3.Perfect after sales service system
If any problem, contact us.
4.ODM Services
Powerful R&D department can provide
professional technical support.
5.OEM Services
More than 100 pieces, you can decide the
trademark and package.
6.Quality utmost
Each product reaches the national
standard before factory inspection.
