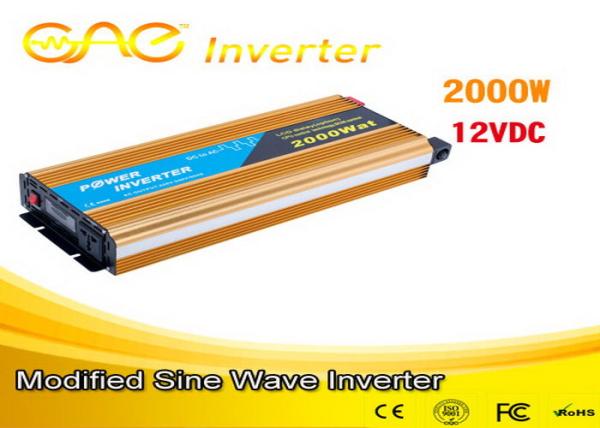

High frequency modified sine wave inverter

CAI-2000

Rated Power:2000W

Peak Power:4000W

Battery Input Voltage:

12V/(10V-15V)-24V/(20V-30V)-48V/(40V-60V)-60V/(50V-75V)-72V/(60V-90V)

Low Voltage Disconnection:(9V-10V)-(19V-21V)-(39V-41V)-(49V-51V)-(59V-61V)

Over Voltage Disconnection:15V-16V)-(30V-31V)-(60V-61V)-(75V-76V)-(90V-91V)

Output Voltage:AC220V±5%

Output Frequency:50Hz±3/ 60Hz±3

No Load Loss:<0.3A

Transfer Efficiency:>90%

Output Waveform:Modified Sine Wave

Protection:Over Load, Short-Circuit,Under Voltage,High Voltage, Over Temperature

Charge Current:12V/20A 24V/15A

Environment

Noise:≦50dB

Temperature:'－20℃～40℃

Humidity: 10%-90%(No condensation)

N.W./G.W.(KG):3.1KG/3.9KG

Size(mm):460*180*70mm

Genaral Features :

A． DSP Intelligent control chip

B． Result fetched from Effective value, not Average value

C． Photoelectricity isolation circuitry technology

D. Switching power is supplied by independent system

E. True Over Temperature Protection

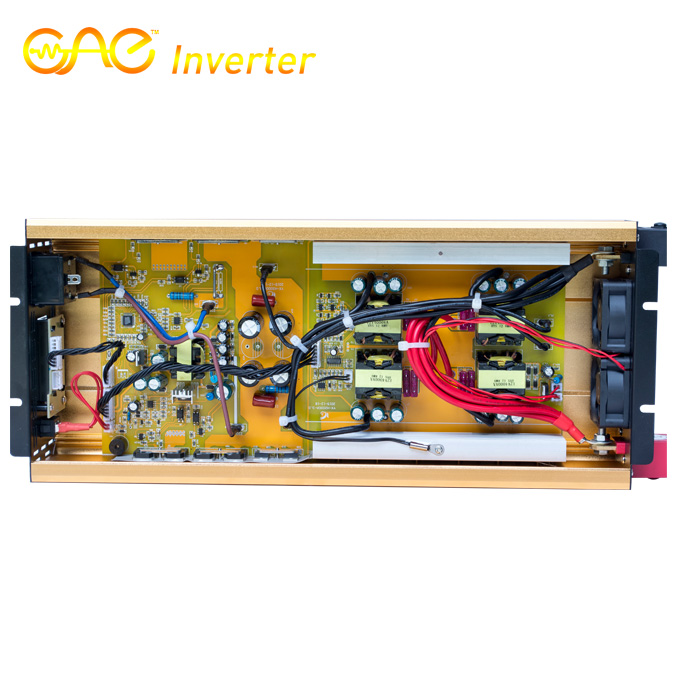

F. Full bridge rectifier and mainboard structure are highly optimized. Input and output circuits are isolated.

G. Strong loading capacity with true onetime soft start.

H. New and original electronic components

I. Internal circuit lines and signal lines are based on plug-pull blocks, not welding
